Tube Clamps



Tube Clamps are manufactured with simplicity and ease of use in mind. They involve no welding, bending, threading or special skills, requiring just an Allen key or ratchet key to tighten grub screws and join galvanised tubes in a matter of seconds. They are manufactured in a weather resistant galvanised finish and are also available in a range of polyester powder coated colours. Our comprehensive range of Tube Clamp fittings and sizes allows it to be used in a wide variety of commercial and domestic, and temporary or permanent applications


Product Details:
Minimum Order Quantity
10 Piece
Size Range
1/2
Material
Stainless Steel, Rubber, Aluminum
Size
6 MM TO 219 MM
Type
Light duty , heavy duty Aluminium series.

Tube Clamp Specification
Material
  • Clamp Halves (bodies) –
  • PP (polypropylene – H110ma Grade) – Dark Green Colour,
  • PA (polyamide – Pa-6 Grade) Black Colou,
  • Aluminium (lm-6 Grade)
Top Bottom Plates
  • Steel (ST 37.5, IS 2062, IS 1018) With Trivalent Zinc Coated/phosphatised Finish.
  • Stainless Steel ( SS 304, SS 316) With Natural Finish
  • Bolts – Steel ( 4.6, 8.8, 10.9 Grade), Stainless Steel (SS 304, SS 316 Grade)
  • Size – 6 Mm To 219mm ¼” To 8”
  • Series - Standard Series Heavy Series


Tube Clamp Sizes & Measurements
Clamping Range # mm
Size
# inches
Width (w)
# mm
Thickness
# mm
20-25
1/2"
20
2
26-30
3/4"
20
2
32-36
1"
20
2
38-44
1 1/4"
20
2
47-51
1 1/2"
20
2
60-64
2"
20
2
74-80
2 1/2"
20
2
87-92
3"
20
2
113-118
4"
20
2
138-142
5"
20
2
160-167
6"
20
2
215-220
8"
20
2

Pipe Clamp
    Minimum Order Quantity
    100 Set
    COLOR
    GREEN
    Size Range
    1/2
    Material
    Stainless Steel, Aluminum
    Locking Screw
    M6X20, M6X30
    Standard
    DIN 3015
    Size
    6mm to 219 mm
    Type
    Standard, heavy & aluminium

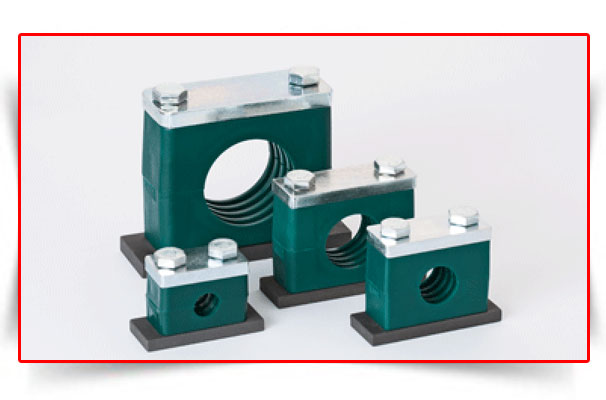

Hydraulic Clamps
    Minimum Order Quantity
    30 Piece
    COLOR
    GREEN
    Size Range
    1/2
    Material
    Aluminum, SS316L
    Size
    OD 6 mm, OD 102 mm
    Structure
    Hydraulic
    Locking Screw
    M5X15, M6X20, M6X25, M6X30

Hydraulic Tube Clamp
    Minimum Order Quantity
    30 Piece
    COLOR
    GREEN
    Size Range
    1/2,1/2
    Material
    Aluminum, SS316L
    Size
    OD 6 mm, OD 102 mm
    Structure
    Hydraulic
    Locking Screw
    M5X15, M6X20, M6X25, M6X30

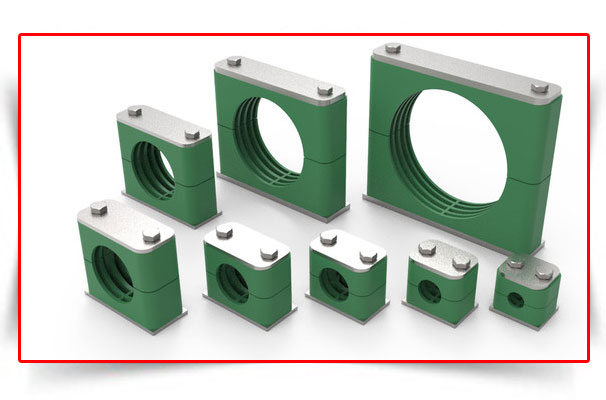

Din 3015 Hydraulic Clamps
    Minimum Order Quantity
    50 Piece
    COLOR
    GREEN
    Locking Screw
    M6X20,M5X15,M6X25,M6X30
    Size Range
    1/2,1/2
    Material
    Aluminum,Stainless Steel
    Size
    OD 6 mm, OD 102 mm
    Structure
    Hydraulic

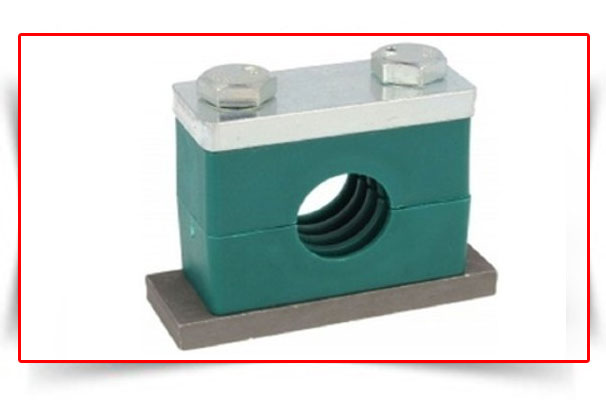

haevy Series Pipe Clamp
    Minimum Order Quantity
    50 Piece
    COLOR
    GREEN
    Locking Screw
    M5X15,M6X25,M6X30,M6X20
    Material
    Aluminum,Stainless Steel
    Size Range
    1/2,1/2
    Type
    Standard (Light Duty), Heavy Duty & Twin Clamp Standard : Part 1 – Series A, Part 2 – Series C & Part 3 – Series B
    Size
    6mm to 168mm, 1/4”OD to 8 1/2”OD, 1/8”NB to 6”NB
    Pressure
    Light duty for 1500PSI & Heavy Duty for more than 1500PSI
    Material
    Jaws – Polypropylene, Aluminum, Polyamide Top & Bottom Plate and Bolt – Steel
    Stainless Steel Surface Treatment
    Steel – Zinc Coated (A3C), Trivalent Stainless Steel –Natural.
    Clamp Halve
    Polypropylene, Santoprene, Aluminum

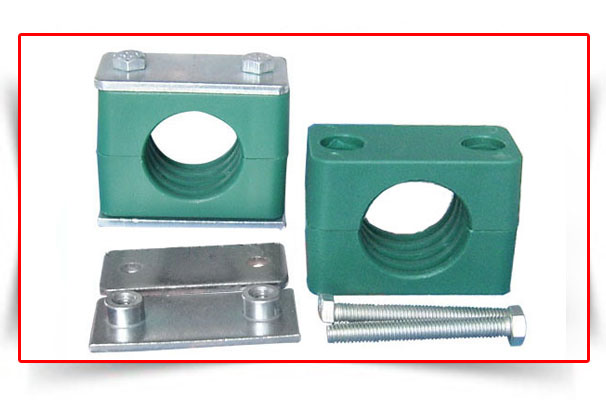

Standard Series Pipe Clamp
    Minimum Order Quantity
    50 Piece
    COLOR
    GREEN
    Locking Screw
    M6X25,M6X20,M5X15,M6X30
    Material
    Aluminum,Stainless Steel
    Size Range
    1/2,1/2
    Type
    Standard (Light Duty), Heavy Duty & Twin Clamp Standard : Part 1 – Series A, Part 2 – Series C & Part 3 – Series B
    Size
    6mm to 168mm, 1/4”OD to 8 1/2”OD, 1/8”NB to 6”NB
    Pressure
    2,000 psi maximum
    Material
    Jaws – Polypropylene, Aluminum, Polyamide Top & Bottom Plate and Bolt – Steel
    Stainless Steel Surface Treatment
    Steel – Zinc Coated (A3C), Trivalent Stainless Steel –Natural.
    Clamp Halve
    Polypropylene, Santoprene, Aluminum

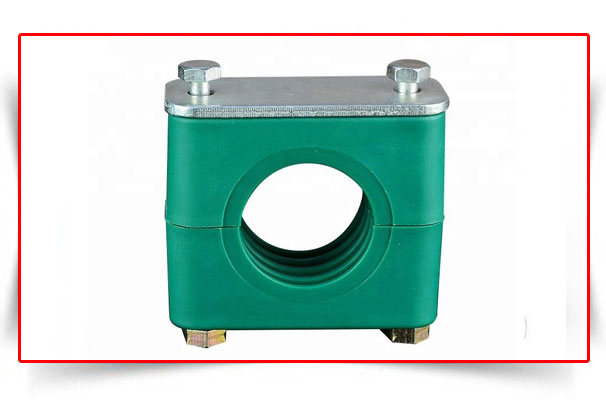

Light Duty Pipe Clamp
    Type
    		 Standard (Light Duty), Heavy Duty & Twin Clamps
    Series
    		 Part 1 – Series A, Part 2 – Series C & Part 3 – Series B
    Size
    		 6 mm to 168 mm, 1/4” OD to 8 1/2” OD, 1/8” NB to 6” NB
    Pressure
    		 1500 PSI for Light Duty and more than 1500 PSI for Heavy Duty
    Material
    		 Jaws – Polypropylene, Polyamide, Aluminum

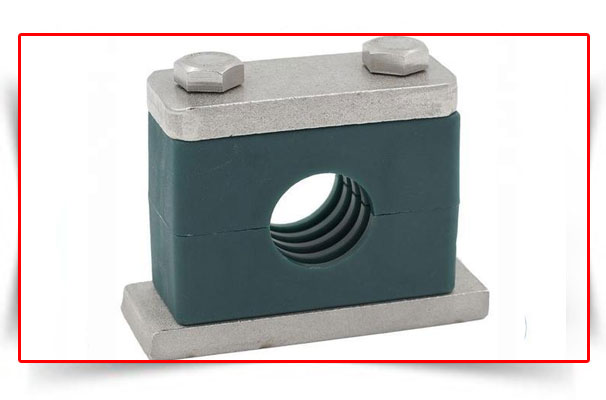

Heavy Duty Pipe Clamp
    Minimum Order Quantity
    50 Pair
    COLOR
    GREEN
    Locking Screw
    M6X25,M6X20,M5X15,M6X30
    Material
    Aluminum,Stainless Steel
    Size Range
    1/2,1/2
    Structure
    Hydraulic

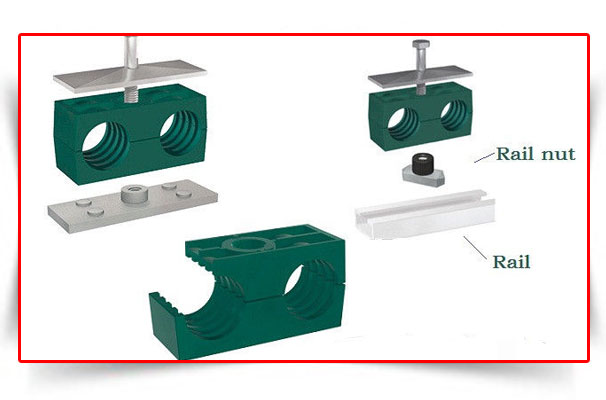

Din 3015 Pipe Clamp
    Minimum Order Quantity
    50 Pair
    COLOR
    GREEN
    Locking Screw
    M6X25,M6X20,M5X15,M6X30
    Material
    Aluminum,Stainless Steel
    Size Range
    1/2,1/2
    Structure
    Hydraulic

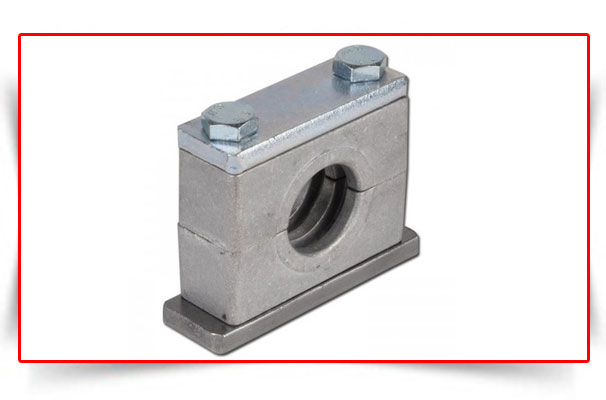

Aluminium Tube Clamp
    Minimum Order Quantity
    100 Set
    Locking Screw
    M6X25,M6X20,M6X30,M5X15
    Material
    Aluminum
    Size Range
    1/2,1/2,1/2
    Structure
    Hydraulic

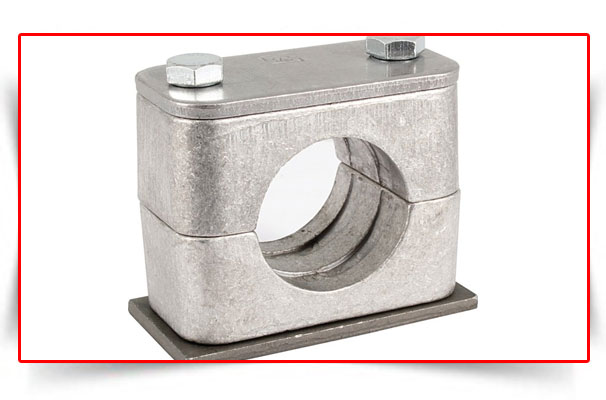

Aluminium Tube & Pipe Clamp
    Minimum Order Quantity
    100 Set
    Locking Screw
    M6X25,M6X20,M6X30,M5X15
    Material
    Aluminum
    Size Range
    1/2,1/2,1/2
    Structure
    Hydraulic

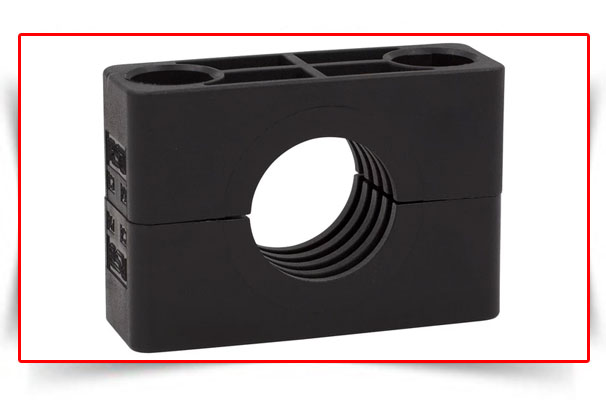

Polyamide Pipe Clamp
    Minimum Order Quantity
    100 Piece
    Locking Screw
    M6X25,M6X20,M6X30,M5X15
    Material
    Polyamid
    Size Range
    1/2,1/2,1/2
    Structure
    Hydraulic

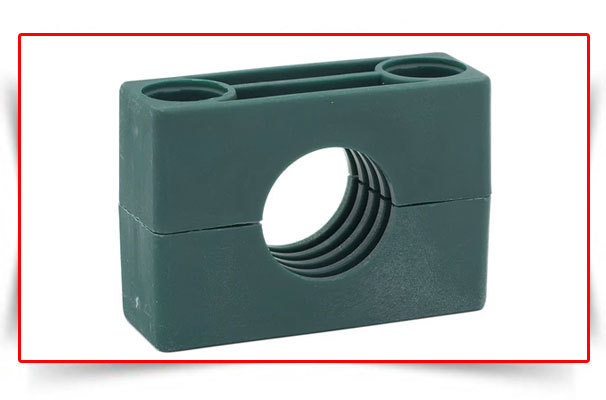

Polypropylene Pipe Clamp
    Material
    100 Piece
    Size
    M6X25,M6X20,M6X30,M5X15
    Standard
    Polyamid
    Standard
    1/2,1/2,1/2
    Pressure
    Hydraulic
    Process
    Hydraulic

Nylon Pipe Clamp
Minimum Order Quantity
50 Piece
Locking Screw
M 6 TO M 20
Material
Plastic,Stainless Steel
Size Range
1/2''-10
Structure
Hydraulic
Size
6 mm to 219 mm.

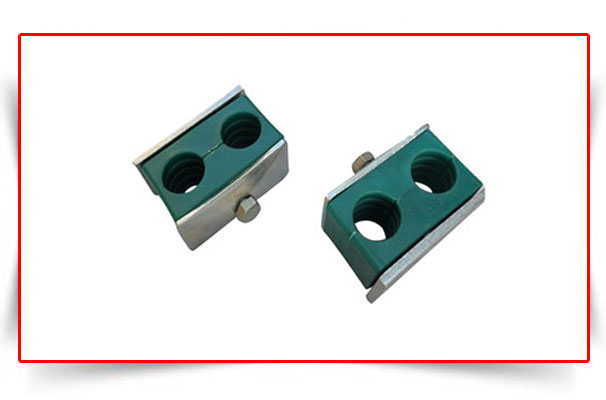

Twin Series Pipe Clamp
Minimum Order Quantity
50 Bag
COLOR
GREEN
Locking Screw
M5X15,M6X20,M6X25,M6X30
Material
Stainless Steel
Size Range
1/2,1/2,1/2
Structure
Hydraulic

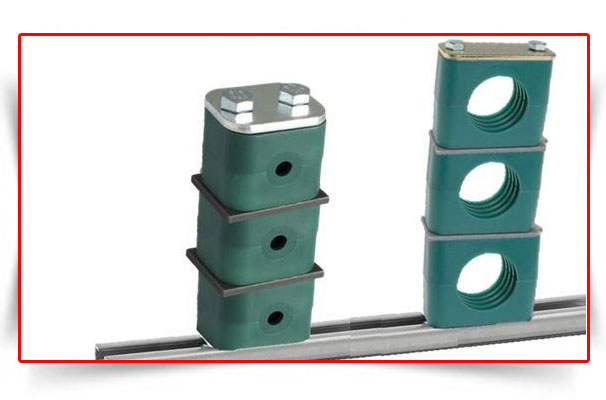

Multilayer Pipe Clamp
Minimum Order Quantity
20 Piece
Locking Screw
M5X15,M6X20,M6X30,M6X25
Material
Stainless Steel,UPVC,Aluminum,Rubber
Size Range
1/2,1/2,1/2,1/2,1/2''-10

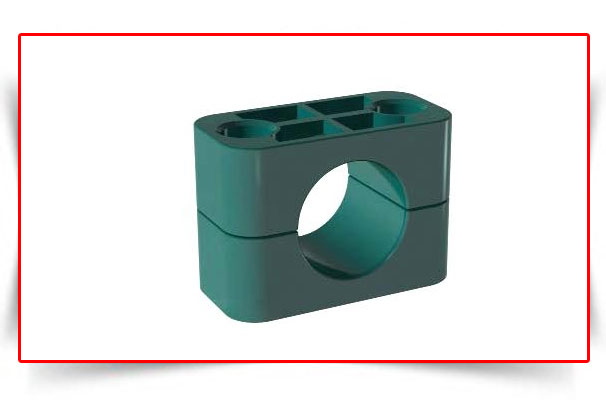

Stauff Clamps
Minimum Order Quantity
50 Piece
Locking Screw
M6X25, M 12 ,M6X20,M6X30,M5X15
Material
Rubber,Stainless Steel,Plastic,Aluminum
Size Range
1/2
Structure
Hydraulic

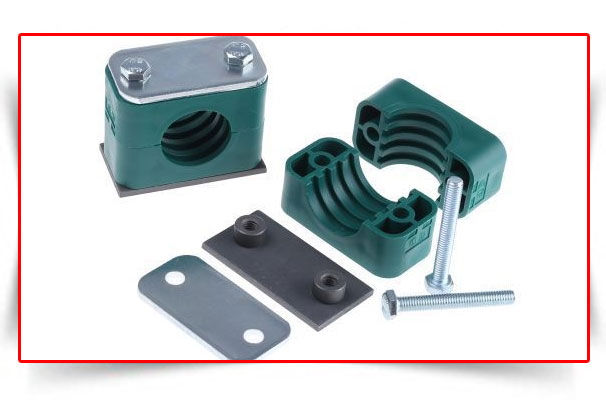

Parker Tube Clamp
Minimum Order Quantity
100 Piece
COLOR
GREEN
Locking Screw
M6X20,M5X15,M6X30
Material
Stainless Steel
Size Range
1/2
Structure
Hydraulic

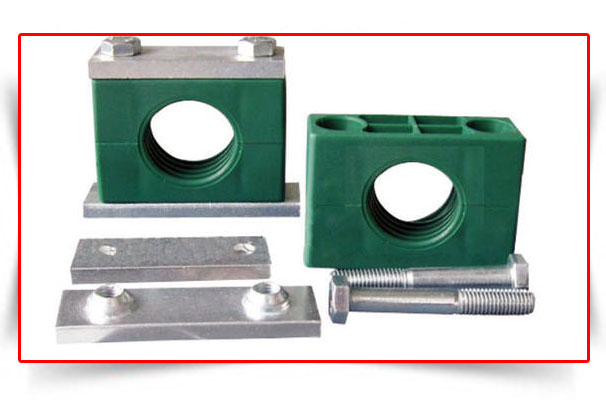

Rail Nut Pipe Clamps
Minimum Order Quantity
100 Piece
Locking Screw
M6X20,M5X15,M6X30
Material
Aluminum,Steel,Stainless Steel
Structure
Hydraulic

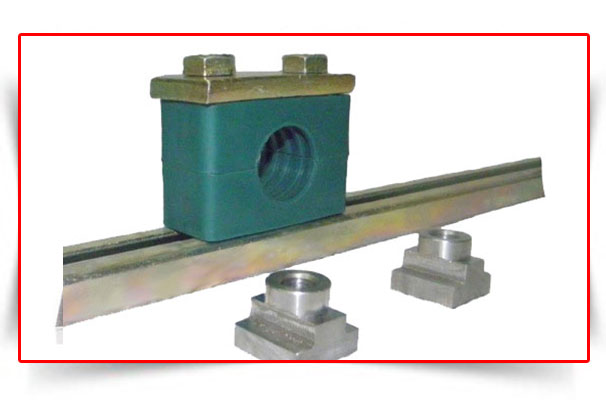

Rail Channel Pipe Clamps
Minimum Order Quantity
100 Piece
Locking Screw
M6X20,M5X15,M6X30
Material
Steel
Structure
Hydraulic
Color
SILVER
Size
ALL STANDARD SIZES
Raw Material
C.S, SS 304 , SS 316, SS 3014 L , SS 316 L
Thickness
1.5 mm. 2 mm 2.5-3 mm
Finish
Galvanized 275 GSM
C Channel Size
1 meter

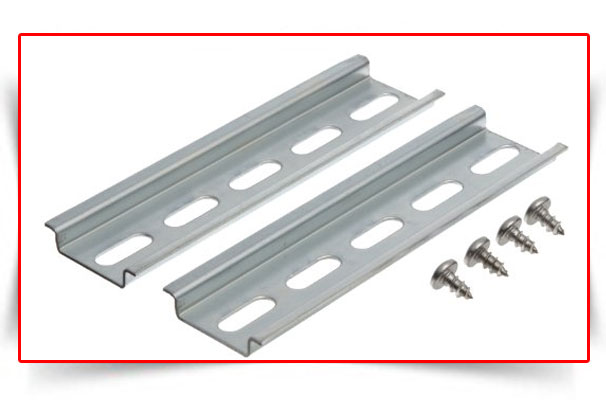

Din Rail
Minimum Order Quantity
100 Piece
Application
Automobile Industry, Construction, Pharmaceutical / Chemical Industry, Oil & Gas Industry, RAILWAY
Brand
KE
COLOR
SILVER
Size
ALL STANDARD SIZES
Raw Material
C.S, SS 304 , SS 316, SS 3014 L , SS 316 L
Thickness
1.5 mm. 2 mm 2.5-3 mm
Finish
Galvanized 275 GSM
C Channel Size
1 meter
Material
Steel Aluminum

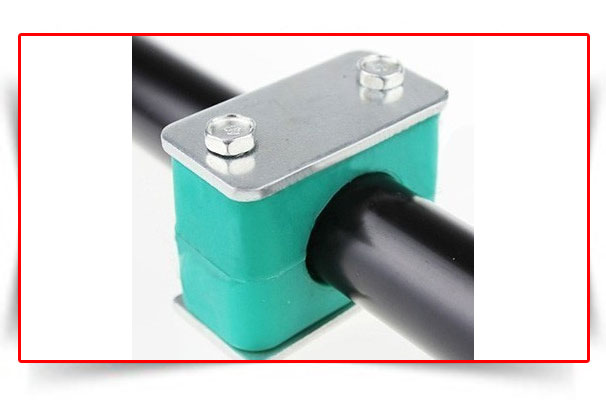

SS Tube Clamps
Minimum Order Quantity
10 Piece
Size Range
1/2
Material
Stainless Steel, Rubber, Aluminum
Size
6 MM TO 219 MM
Type
Light duty , heavy duty Aluminium series.

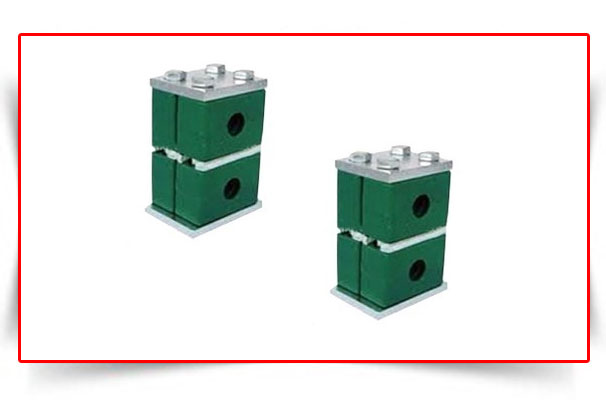

Stainless Steel Hydraulic Clamps
Minimum Order Quantity
30 Piece
COLOR
GREEN
Size Range
1/2
Material
Aluminum, SS316L
Size
OD 6 mm, OD 102 mm
Structure
Hydraulic
Locking Screw
M5X15, M6X20, M6X25, M6X30
