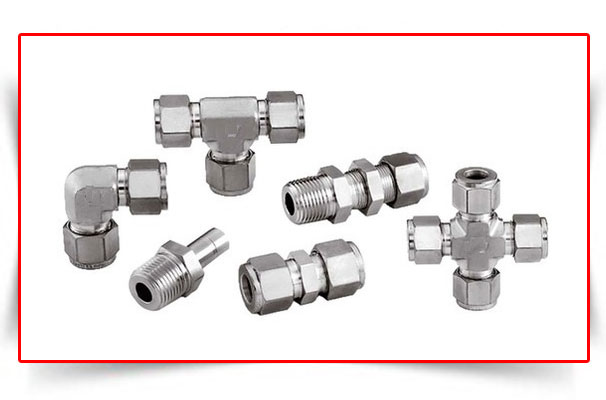

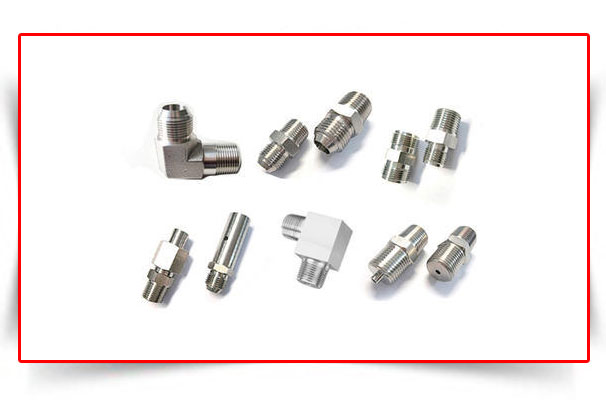

Hydraulic High Pressure Tubes & Fittings
Male Stud Tee, Equal Tee, Swivel Tee Olive, Weldable Fittings & Nipples, Male Stud Couplings, Taper Male Stud Coupling Male Stud Elbow, Equal Elbow, Swivel Elbow Female Stud Coupling, Bulk Head Connector.
Size :1/8" TO 2"
Tube In MM OD To Suit 4mm To 42mm OD TUBE
MOC: :FCS
Pressure
0 3500 PSI
Make :HYDROMATIC, HYLOC and also available in high pressure SEA mless tube.
Size :4mm to 42mm OD Tube
Pressure :0 TO 6000 PSI.
Minimum Order Quantity
50 Piece
Application
Chemical Fertilizer Pipe,Pneumatic Connections,Hydraulic Pipe,Structure Pipe
Brand
KPF
Size
All kind of Size is available
Standard
SEA J514, SEA J1453, BS5200, DIN2353, DIN3865 Standards.
Material
Carbon Steel, Stainless Steel, Brass and Copper.
Thread
JIC series, BSP series, Metric series, ORFS series, NPTF series and NPTM series.
Thread Size
ALL STANDARD SIZES
M.O.C
Stainless Steel, Carbon Steel and Alloy Steel.
End Connections
1/4" to 2" NPTI BSPIBSPTI Metric, UNF,SW & BW
Rating
Up to 10,000 PSI
OEM
Our engineering Team and Drawing Dept. could design and make hsoe fittings according to your special requirement.
Minimum Order Quantity : 100 Piece
Application : Structure Pipe,Chemical Fertilizer Pipe,Gas Pipe
Brand : KPF
Connection : Male,Welded,Female
Elbow Bend Angle : 45 Degree,30 Degree,180 Degree,60 Degree,90 Degree
Head Code : Square,Hexagon
Shape : Reducing,Equal
Size : 1 inch,1/4 inch,3/4 inch,2 inch

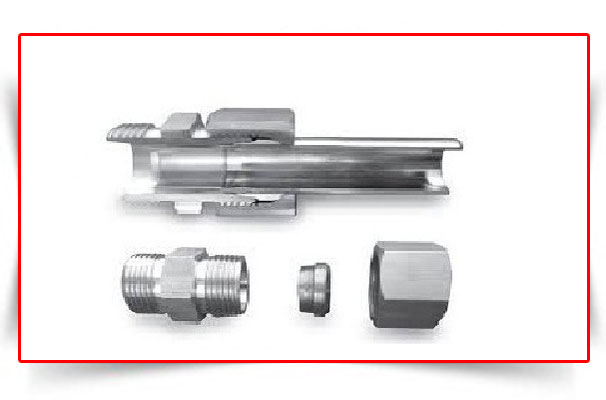

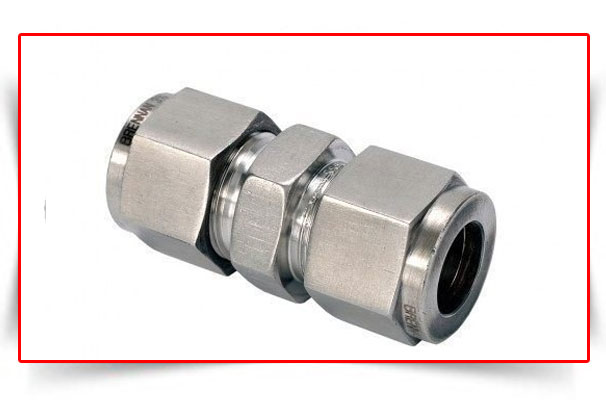

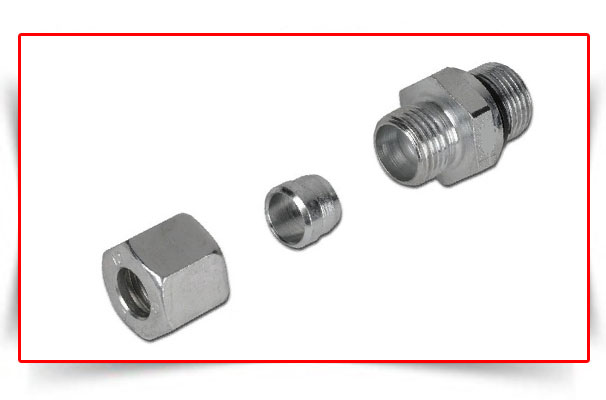

type : flare less bite type (single ferrule), weld nipple type

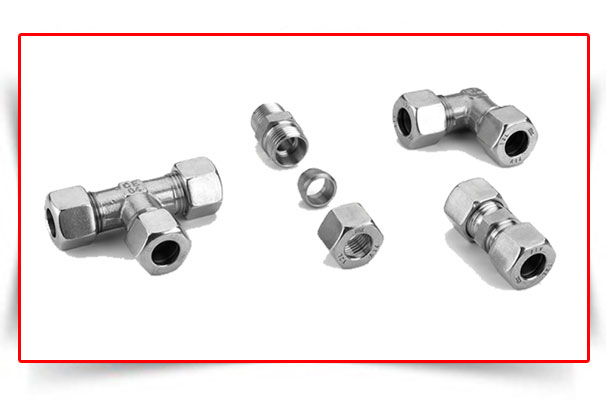

standard : din 2353 / iso 8434 - 1
series : ll (very light), l (light), s (heavy)
size : 4mm to 42mm, 1/8od to 2od, 1/8nb to 2nb
pressure : ranging from 100bar to 630bar depending on type and size
material : steel, stainless steel, brass (from extruded bar or forging)
surface treatment : steel - zinc coated (a3c) or phospatised, trivalent stainless steel - electro polished, nut silver plated to avoid galling, brass - natural
Brand: : KPF
Size: : 1/16"-2"
Standard: : DIN / JIS
Pressure Rating: : 3000psi -10000psi
OEM Accepted : yes
Production Capacity: : 2000 pcs per week
material :
Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10,00Cr17Ni14Mo2, ect)
Alloy steel(ASTM A234 WP12,WP11,WP22,WP5,WP9,WP91,16MnR, Cr5Mo, 12Cr1MoV, 10CrMo910,15CrMo, 12Cr2Mo1, ect)
application : Petroleum,chemical,machinery,electric power,shipbuilding, construction,etc.
Material : 1025 Carbon Steel
Connection Type - Thread, Tube Direction : Connectors
Surface Treatment : Trivalent Chromate
Applicable Fluid : Oil
Tube Material : Polybutene
Connection Type : Pipe⇔Screw, plug-in type
Connection Thread Type : R
