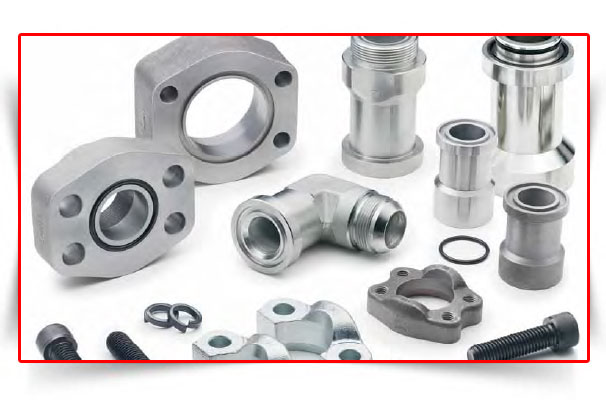

These SAE Flanges are great for use in harsh enviroments (like marine work), as they are corrision resistant, and controlled enviroments like clean-rooms et.. They can also be used as an alternative to fabrication to construct structures, and are also useful for building temporary or portable structures like trade show stands, banner stands, for staging or lighting rigs etc.as they are extremely lightweight.
Pipe Clamps are manufactured as per DIN– Part 1, 2 & 3 for ease of interchangeability. Due to Our Product Reliability & peroformance we are leading supplier of SAE Flanges in India. Reckoned as a reckoned business firm, we are readily instrumental in offering to our clients a wide consignment of SAE Flanges. The basic components used in its development are of topnotch quality and is well reviewed before finally getting utilized in the development process. Apart from this, the final consignment is well tested before its delivery at the premises of our clients.series Pipe -Tube clamps are normally used for high temprature applications (more than 1000 degree celcius) & the W.P. range more then 1500 PSI (100 BAR) and up to 8000 psi (600 BAR) in the Steel / stainless steel Piping System.
Specifications : ASTM B403 / ASME SB403
Material – Carbon Steel, Stainless Steel (SS 304, SS 304L SS 316, SS 316L SS 316TI), DUPLEX, SUPER DUPLEX, INCONEL, MONEL, HASTELLOY, 254 SMO And All Others Grades.
Size – ½” NB TO 6” NB
Thread – NPT, BSP, BSPT, UNF

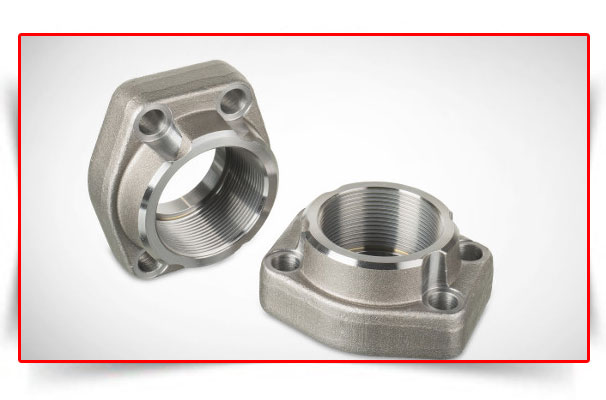

Pressure Rating – 3000 PSI & 6000 PSI
Application - Hydraulic piping.
| Type | AFS301 |
| Size | 1/2" |
| Bolt Size | M8X30 |
| Pressure | 345 BAR |
| Weight kg/m | 0.12KG |
| Type | AFS302 |
| Size | 1/2" |
| Bolt Size | M8X35 |
| Pressure | 345 BAR |
| Weight kg/m | 0.16KG |
| Type | AFS302 |
| Size | 1" |
| Bolt Size | M10X35 |
| Pressure | 345 BAR |
| Weight kg/m | 0.22KG |
| Type | AFS080S038 |
|---|---|
| Size | 1/2" |
| Thread | 1/2" BSP |
| Bolt Size | M8X30 |
| Pressure | 345 |
| Weight | 0.27 |
| Type | AFS100S |
|---|---|
| Size | 3/4" |
| Thread | 3/4" BSP |
| Bolt Size | M10X35 |
| Pressure | 345 |
| Weight | 0.37 |
| Type | AFS102S |
|---|---|
| Size | 1" |
| Thread | 1" BSP |
| Bolt Size | M10X35 |
| Pressure | 345 |
| Weight | 0.45 |
| Type | AFS080GM |
|---|---|
| Size | 1/2" |
| Thread | 1/2" bsp |
| Bolt Size | M8 x 30 |
| Pressure | 345 bar |
| Weight | 0.25kgs |
| Type | AFS100GM |
|---|---|
| Size | 3/4" |
| Thread | 3/4" bsp |
| Bolt Size | M10 x 35 |
| Pressure | 345 bar |
| Weight | 0.37kgs |
| Type | AFS102GM |
|---|---|
| Size | 1" |
| Thread | 1" bsp |
| Bolt Size | M10 x 35 |
| Pressure | 345 bar |
| Weight | 0.45kgs |
